Loadmaster Steel Sections

Loadmaster Systems offers a complete line of engineered structural steel deck sections designed to meet the demands of any commercial roofing project, with span capabilities ranging from 4 feet to over 34 feet. All Loadmaster steel deck sections are engineered in full compliance with AISI Cold-Formed Steel and Steel Deck Institute (SDI) specifications, giving architects, structural engineers, and building owners complete confidence in every assembly. Whether you're planning a straightforward low-slope retrofit or a complex long-span industrial roof system, Loadmaster's custom-engineered steel deck solutions provide the structural performance, span flexibility, and load capacity your project demands.

Loadmaster Heavy Duty

Available in Gauges: 25 ga, 24 ga, 22 ga
Available Finishes: G-60 & G-90

Diagram of a Loadmaster Heavy Duty steel section cover with dimensions, showing a pattern with 3-3/4-inch pitch, 15/16" inch depth and cover width of 30 inches.

Loadmaster Pyro Span

Available in Gauges: 22 ga, 20 ga, 18 ga, 16 ga
Available Finishes: White Primer Coating, Gray Primer Coating, G-60, G-90 & White Primer over G-60

Diagram of a pyrospan steel section cover with dimensions, showing a pattern with 6-inch pitch, 1.5 inch depth and cover width of 36 inches.
Diagram of a Super Span 150 steel section cover with dimensions, showing a pattern with 6-inch pitch, 1.5 inch depth and cover width of 36 inches.

Loadmaster Super Span 200

Available in Gauges: 22 ga, 20 ga, 18 ga
Available Finishes: White Primer Coating, Gray Primer Coating, G-60, G-90 & White Primer over G-60

Diagram of Super Span 200 roofing material showing dimensions and profile outline.
Diagram of a metal roofing panel called Super Span 300 with measurements for coverage width, panel width, and standing seam height.

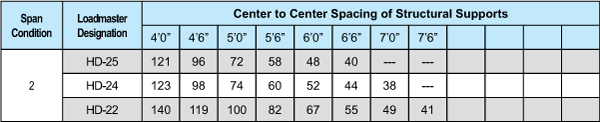

Table showing load distances in inches for different loadmaster designations under 2 span condition.

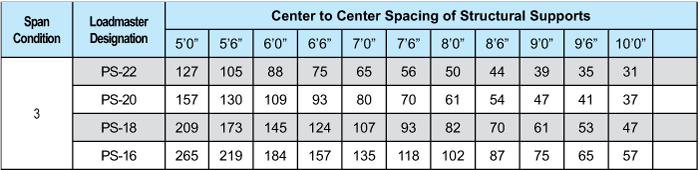

Table showing center-to-center spacing of structural supports at different span conditions and loadmaster designations, with measurements ranging from 31 to 265.

Loadmaster Super Span 150

Available in Gauges: 22 ga, 20 ga, 18 ga, 16 ga
Available Finishes: White Primer Coating, Gray Primer Coating, G-60, G-90 & White Primer over G-60

Chart showing loadmaster designations and their allowable center-to-center spacing of structural supports at various spans, with specific values listed for each category.

Loadmaster Super Span 200R

Available in Gauges: 20 ga, 18 ga, 16 ga
Available Finishes: G-60, G-90 & White Primer over G-60

Technical drawing of a metal deck section 'Super Span 200R' with measurements: 24.5 inches length, 2 inches height, and various slot widths.

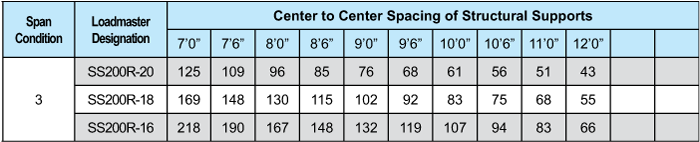

A table showing the center to center spacing of structural supports for different span conditions and loadmaster designations. The table includes columns for spans from 7'0" to 12'0" and rows for loadmaster designations SS200R-20, SS200R-18, and SS200R-16 with corresponding measurements.

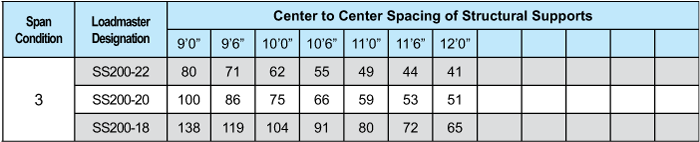

Table displaying center to center spacing measurements of structural supports for different loadmaster designations and span conditions, with columns for span conditions and rows for loadmaster designations.

Loadmaster Super Span 300

Available in Gauges: 22 ga, 20 ga, 18 ga, 16 ga
Available Finishes: White Primer Coating, Gray Primer Coating, G-60, G-90 & White Primer over G-60

Table showing structural support load values at various spans, with loadmaster designations SS300-22, SS300-20, SS300-18, and SS300-16, and corresponding load values for spans from 9'6" to 15'0".

Loadmaster Super Span 300

Available in Gauges: 20 ga, 18 ga, 16 ga
Available Finishes: G-60, G-90 & White Primer over G-60

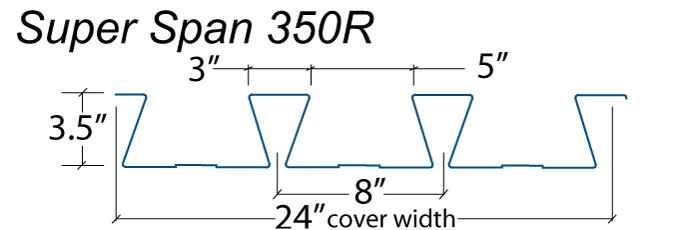

Technical drawing of a steel deck profile labeled Super Span 350R with measurements of 3.5 inches height, 8 inch pitch, 3 inches between peaks, and total width of 24 inches.

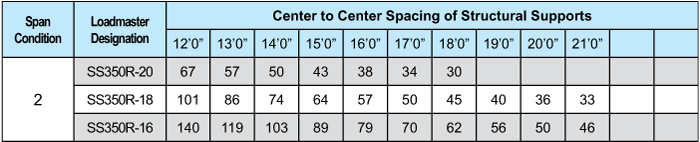

Table displaying load capacity values based on span condition, loadmaster designation, and center-to-center spacing of structural supports, with categories for spans from 12 to 21 feet.

Loadmaster has additional steel sections available. Download the full line of Loadmaster Steel Deck Sections through this link.

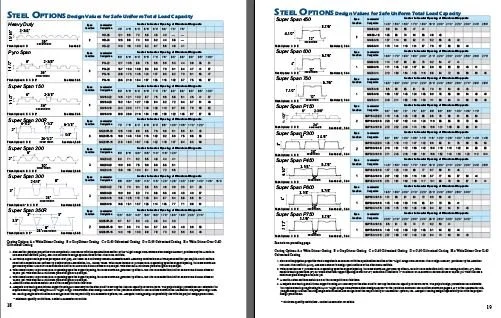

Comparison chart of steel options for safe under or load capacity, showing different models and their specifications in tabular format.
